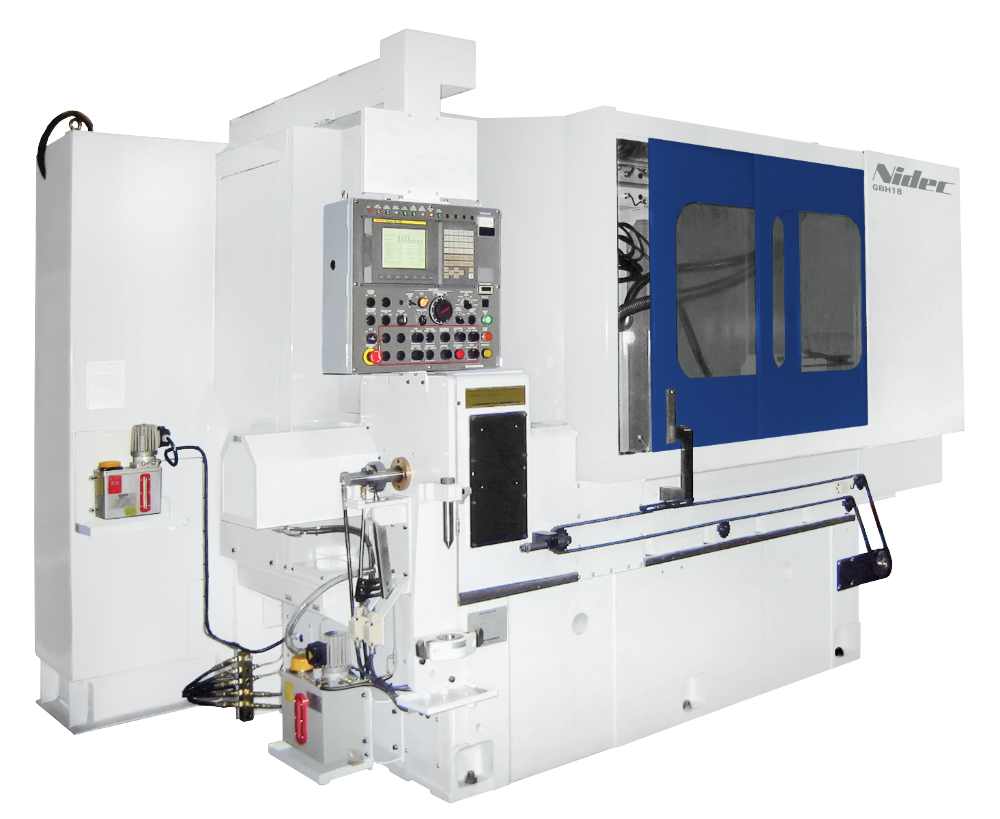

GBH18 Horizontal CNC gear hobbing machine for parts up to 180mm OD

Designed for long shaft hobbing, the GBH18 is a five axis CNC horizontal hobbing machine. The 100mm through hole in the work spindle can accommodate extra long shaft parts. (Not compatible with hydraulic work holding).

5-axis CNC controlled machine. (hob spindle is 6th axis)
Ideal for cutting shaft gears and splines because of wide center distance,
up to 43.7" (1,110 mm).
Up to 80% reduction in set-up and changeover times, compared to
conventional type
All cutting conditions are automatically calculated by "MENU"
programming, including feeds, speeds, and hob shift start and finish.
No index or differential change gears.
Equalized hob wear maintained due to automatic hob shift
Crowing and taper gears can be done easily with CNC.
Both radial and axial axes are controlled by AC servo motors
Maintains high accuracy due to high thermal stability.
Sealed for soluble oil

Machine Information

GBH18 MACHINE INFO

Videos

Could not embed video. View video

Specifications

SpecsDetails
Part max. diameterφ180 mm
Max. cutting moduleM6
Axial travel700 mm
Radial travel methodHob saddle traveling
Hob and work centers distance30 ~ 155 mm
Hob: Max. diameter x lengthφ120 x 200 mm
Hob: Shift160 mm
Hob: Speed150 ~ 1,000 min⁻¹
Axial cutting travel1 ~ 400 mm
Indexing tooth number4 ~ 200
Controlled axes4·5
Main motor (continuous rating)5.5 kW
Machine weight5,000 kg
