GD50CNC

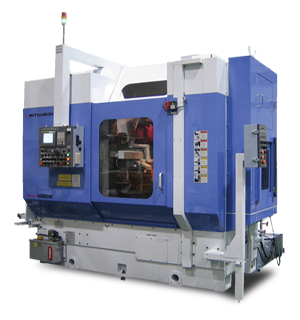

GD50CNC Vertical CNC Gear Hobbing Machine for parts up to 500mm OD

Based on the highly rigid and highly accurate mechanical structure including the table, sliding surface, and feed shaft, this product pursues high processing accuracy from all aspects, such as improving positioning accuracy and reducing the effects of thermal displacement. The G series achieves JIS class 3 for high-precision gears and JIS class 5 [JIS B 1702 (1998)] for high production gears.

In addition, repeatability of processing precision is guaranteed to be Cp=1.33 for an overball diameter tolerance of 50 μm. Meets the needs of high precision.

Stable processing quality is maintained by thorough measures against thermal deformation.

Machine Information

GD50CNC MACHINE INFO

Videos

Could not embed video. View video

Specifications

SpecsDetails
Part max. diameterφ500 mm
Max. cutting module8 M
Axial travel300 mm
Radial travel methodColumn traveling
Hob and work centers distance40 ~ 340 mm
Hob
Max. diameter x lengthφ150 x 230 mm
Shift180 mm
Speed75 ~ 750 min⁻¹
Axial cutting travel1 ~ 1,000 mm
Indexing tooth number5 ~ 1,000
Controlled axes5
Main motor (continuous rating)15 kW
Machine weight10,500 kg
