MAF150R

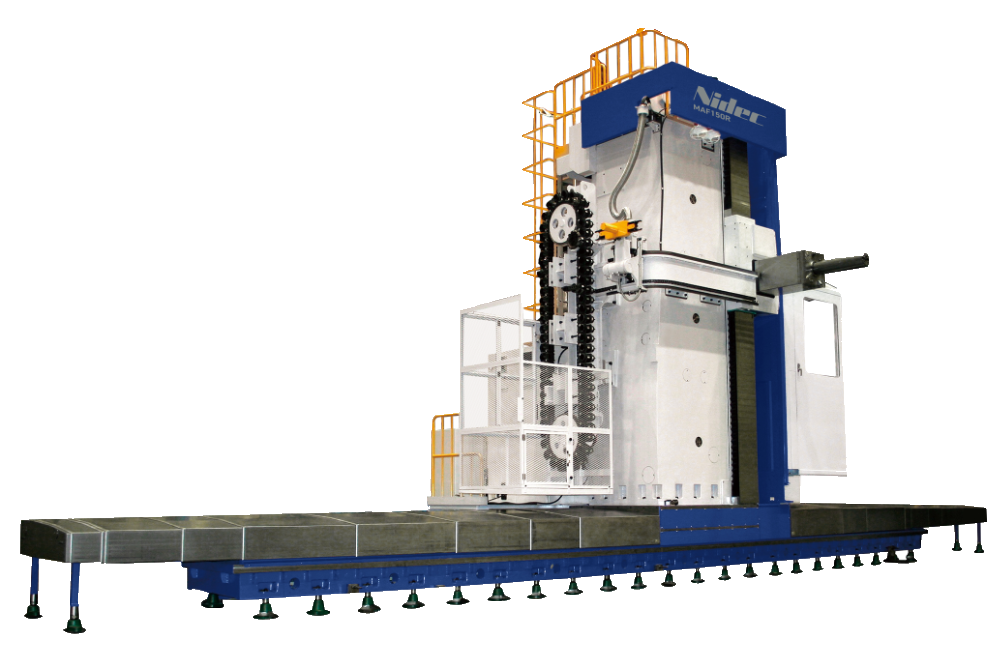

MAF150R Floor Type Horizontal Boring Mill

MAFR series for more powerful and accurate machining

Axis travel (mm)
Column, horizontal X-axis: 5,000 to 21,000
Ram saddle Y-axis: 2,500 (opt. 3,000, 3,500)
Ram, in/out Z-axis: 700
Boring spindle, in/out W-axis: 700
Boring spindle diameter (mm) φ130
Boring spindle taper No.50

Request Quote

Machine Information

MAF150R MACHINE INFO

Videos

Could not embed video. View video

Specifications

SpecsDetails
Table Size
Boring Spindle Diameter5.9"
Spindle HP40/50 HP
Spindle Speed3,000 RPM
Table Horizontal (X-Axis)197" - 354"
Saddle Head Vertical98" - 138"
Column In-Out
Boring Spindle In-Out27.5"
Number of Tools
Rapid Traverse X-Axis Travel945 ipm
Rapid Traverse Y-Axis Travel787 ipm
Rapid Traverse Z-Axis Travel787 ipm
Rapid Traverse W-Axis Travel394 ipm
Rapid Traverse B-Axis Travel
