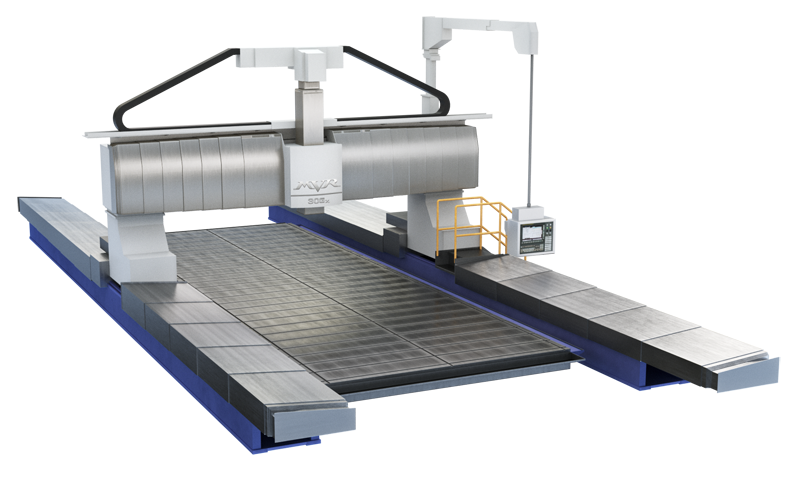

Machine Image 1
Thumbnail 1

MVR30Gx

Request Quote

Machine Information

No additional information available.

Videos

No video available for this machine.

Specifications

SpecsDetails
Distance Between Columns100.4"
Distance from Table to Spindle Nose37.4" / 45.2"
Table Width78.7"
Table Length118.1" and More
Table Longitudinal (X-Axis)157.5" and More
Saddle Crosswise (Y-Axis)118.1"
Ram Vertical (Z-Axis)31.5" / 39.4"
Crossrail Vertical (W-Axis)
Ram Size13.8" x 13.8"
Spindle Speed8,000 RPM (other options avail.)
Spindle HP30 / 40 HP
Number of Tools60 / 80 / 100
Rapid Traverse X-Axis Travel787.4 ipm (other options avail.)
Rapid Traverse Y-Axis Travel1,181 ipm
Rapid Traverse Z-Axis Travel591 ipm
Rapid Traverse W-Axis Travel
