Gear History: Euler and the involute tooth

March 2, 2026 by

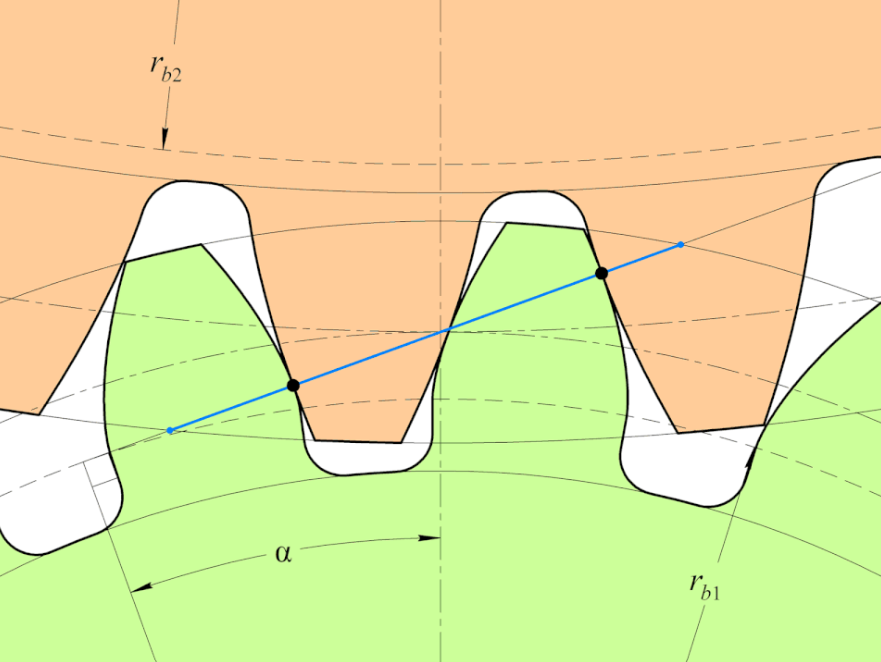

Involute Spur Gears Meshing By M. D. Lebedev – Own work, CC BY 4.0, https://commons.wikimedia.org/w/index.php?curid=157464942

Circa 1754, Leonhard Euler helped put gear tooth geometry on a solid mathematical foundation. His work is often cited in early treatments of the involute profile and why it works so well for power transmission in the real world.

By the 1700s, gears were already essential in clocks, mills, and early machinery. Tooth shapes back then were usually guided by workshop practice, available tools, and whatever worked reliably for a specific build. As gear theory matured, the involute profile emerged as the clear winner because it combines predictable motion with manufacturing practicality.

1) The involute’s real superpower: center distance forgiveness

In a perfect drawing, the center distance never changes. In a real gearbox, it does. Housings deflect under load, bearings wear, temperatures shift dimensions, and tolerance stack-ups happen. The involute profile’s key advantage is that it maintains a constant angular velocity ratio even with small variations in center distance.

2) Line of action: connecting shape to force

The involute tooth form is inseparable from the line of action. This is the path along which force is transmitted during meshing. In a standard involute mesh, the common normal at the point of contact always lies on the same line of action. That line is a common tangent to the base circles of both gears. In a properly functioning system, the gear teeth engage along this line. This ties tooth geometry directly to load direction and outcomes like efficiency, heat generation, and wear.

3) Why manufacturing adopted it and never looked back

The involute is not just mathematically convenient, it is also manufacturing-friendly. Generating methods like hobbing and shaping align naturally with involute geometry, which supports scalable production. As requirements tightened for speed, noise, and durability, the same involute foundation carried forward into finishing processes like grinding, where repeatability and accuracy matter.

What this means today

Modern gear programs add profile and lead modifications, surface engineering, and heat treat control, but the baseline assumption is still the involute. It is a tooth form that is predictable and compatible with modern production methods.

This is the bridge from 18th-century mathematics to today’s factories. At NIDEC MACHINE TOOL AMERICA, we help manufacturers turn that theory into consistent results through the machines used to cut and grind gears to meet modern demands for accuracy, durability, and throughput.
