Gear History: Euler and the Involute Tooth

Posted on by NMTA

Circa 1754, Leonhard Euler helped put gear tooth geometry on a solid mathematical foundation. His work is often cited in early treatments of the involute profile and why it works so well for power transmission in the real world.

By the 1700s, gears were already essential in clocks, mills, and early machinery. Tooth shapes back then were usually guided by workshop practice, available tools, and whatever worked reliably for a specific build. As gear theory matured, the involute profile emerged as the clear winner because it combines predictable motion with manufacturing practicality.

1) The Involute’s Real Superpower: Center Distance Forgiveness

In a perfect drawing, the center distance never changes. In a real gearbox, it does. Housings deflect under load, bearings wear, temperatures shift dimensions, and tolerance stack-ups happen. The involute profile’s key advantage is that it maintains a constant angular velocity ratio even with small variations in center distance.

2) Line of Action: Connecting Shape to Force

The involute tooth form is inseparable from the line of action. This is the path along which force is transmitted during meshing. In a standard involute mesh, the common normal at the point of contact always lies on the same line of action. That line is a common tangent to the base circles of both gears. In a properly functioning system, the gear teeth engage along this line. This ties tooth geometry directly to load direction and outcomes like efficiency, heat generation, and wear.

3) Why Manufacturing Adopted it and Never Looked Back

The involute is not just mathematically convenient, it is also manufacturing-friendly. Generating methods like hobbing and shaping align naturally with involute geometry, which supports scalable production. As requirements tightened for speed, noise, and durability, the same involute foundation carried forward into finishing processes like grinding, where repeatability and accuracy matter.

What This Means Today

Modern gear programs add profile and lead modifications, surface engineering, and heat treat control, but the baseline assumption is still the involute. It is a tooth form that is predictable and compatible with modern production methods.

This is the bridge from 18th-century mathematics to today’s factories. At NIDEC MACHINE TOOL AMERICA, we help manufacturers turn that theory into consistent results through the machines used to cut and grind gears to meet modern demands for accuracy, durability, and throughput.

Learn more about NIDEC MACHINE TOOL AMERICA’S products: https://www.nidec-machinetoolamerica.com/products/

Photo: Involute Spur Gears Meshing By M. D. Lebedev – Own work, CC BY 4.0, https://commons.wikimedia.org/w/index.php?curid=157464942

Gear History: How Winter Driving Depends on Gear Kinematics

Posted on by NMTA

February brings the toughest testing ground for any drivetrain: the icy corner.

When your vehicle enters a turn, geometry dictates that the outside wheel must travel further than the inside wheel. If both wheels were locked to a single shaft, one would be forced to skid. On a dry summer road, this causes tire wear. On an ice patch, it causes a loss of control.

The solution to this problem is the differential, a masterpiece of gear logic that has remained largely unchanged since Onésiphore Pecqueur patented it in 1828.

Schematic diagram of a ring-and-pinion differential

The Geometry of Control

Pecqueur’s design uses a “planet and sun” arrangement of bevel gears. Power enters through a ring gear, which rotates a carrier housing. Inside, small pinions mesh with side gears on each axle.

In a straight line, the gears do not rotate relative to each other. The whole unit spins as one.

In a turn, the pinions begin to “walk” around the side gears, allowing the outside wheel to speed up exactly as much as the inside wheel slows down. The carrier speed is always the average of the two axle speeds. This mechanical averaging is what allows a car to maintain power through a curve without breaking traction due to geometric constraints.

The Traction Tradeoff

While the differential solves the kinematic problem of turning, it introduces a traction limitation. In a standard open differential, torque is split equally between the two wheels. This means that if one wheel is on ice and requires almost no torque to spin, the other wheel, even if it’s on dry pavement, also receives almost no torque. The result is a spinning tire and a stationary vehicle.

This is why limited-slip differentials, locking differentials, and modern traction control systems were developed. They detect when one wheel is slipping and redirect torque or apply braking force to restore forward motion. But even these advanced systems rely on the same fundamental bevel gear architecture that Pecqueur introduced nearly 200 years ago.

The Precision Mandate

For manufacturers, the differential represents a significant challenge. Bevel gears are notoriously sensitive to mounting distances and tooth geometry. Even a few microns of error can lead to excessive noise or localized stress that causes failure under heavy loads.

The tooth contact pattern on a bevel gear is a localized ellipse. If the pinion is mounted too close or too far from the ring gear, that contact shifts to the toe or heel of the tooth. Under the sudden torque spikes common when a wheel regains traction on a patchy road, this misalignment can lead to tooth breakage.

The evolution of the differential is, in many ways, the evolution of the gear cutting machine. The demand for quieter, more durable drivetrains pushed the industry toward the processes we rely on today.

Engineering for the Elements

As we navigate the tail end of winter, the differential serves as a reminder that great engineering is often invisible. It works silently under the chassis, translating complex kinematics into predictable handling.

At NIDEC MACHINE TOOL AMERICA, we build the machines that make precision possible.

Gear History at New Year’s: The Mechanics Behind the Date Jump

Posted on by NMTA

On New Year’s Day, it’s easy to focus on the countdown to midnight. But if you wear a mechanical watch, there’s another transition happening in the background: a small gear train advances the date disc by one exact step.

That seemingly simple jump is the product of more than a century of incremental work on calendar displays, culminating in the mid-20th century with robust date and day-date mechanisms that are still the template today.

How Mechanical Date and Day-Date Mechanisms Work

Mechanically, most traditional date and day-date systems share the same basic architecture.

The hour wheel drives an intermediate wheel. That intermediate wheel drives:

  • A star or date wheel with 31 teeth (date).
  • A star wheel with 7 teeth (day of the week) in day-date watches.

Each of these star wheels advances by one tooth every 24 hours.

The intermediate wheel is important: without it, the calendar would advance twice per day. With it, the system steps once per 24-hour cycle and typically changes around midnight.

To hold each indication precisely in place, the system adds:

  • A jumper spring that engages between teeth on the date (and day) wheel.
  • A shaped cam or finger that gradually loads the jumper and then lets in snap into the next tooth, depending on whether the change is standard, semi-instantaneous, or instantaneous.

From a gear-engineering perspective, that means very small modules and teeth must withstand:

  • Cyclic loading from the daily change.
  • Long-term boundary lubrication.

Backlash and tooth form must be controlled so the indication:

  • Lands on center.
  • Resists vibration or partial movement between jumps.

It’s essentially a micro indexing drive synchronized to a 24-hour input.

Short Months and Manual Corrections

Standard date and day‑date mechanisms are built on a simple assumption: every month has 31 days. In a non‑perpetual system, this means the date must be corrected five times each year, whenever the actual month length falls short of 31 days

That simplification keeps the movement compact and relatively straightforward, but it pushes some of the complexity onto the user. To deal with real‑world calendars, watchmakers provide ways to “force” the date mechanism to advance. In modern quick‑set systems, the crown (or, on some watches, corrector pushers) lets the wearer rapidly click the date forward, and in some designs also change the day or month, one indexed tooth at a time. Earlier non‑quick‑set watches are less forgiving: the only way to update the date is to repeatedly rotate the hands past midnight, cycling the 24‑hour mechanism over and over.

In both approaches, the calendar train has to tolerate behavior that goes far beyond the gentle, once‑per‑day change it was nominally designed for. Rapid corrections impose many small, user‑driven shock loads in quick succession. On top of that, there’s the risk of overlap between human inputs and the watch’s own automatic changeover. If the wearer tries to adjust the date too close to midnight, while the change mechanism is partially engaged, there’s potential for damage.

For gear designers, this will feel familiar. The mechanism is sized and optimized for the ideal operating case: one clean step per 24 hours. But its durability and real‑world reliability are defined just as much by edge conditions: irregular month lengths, impatient users advancing the date as fast as they can, and ill‑timed inputs right in the middle of an automatic change.

What This Means for Modern Gear and Mechanism Design

For engineers working on other gear-driven systems such as indexing tables, rotary actuators, and small step-feed mechanisms, there are a few direct takeaways:

  • Continuous rotation to discrete steps: Calendar mechanisms show a clean way to derive discrete, repeatable steps from a continuous drive, using gear ratios and spring-based jumpers rather than electronics.
  • Load and tolerance discipline at small scale: Because the teeth are tiny and the loads are light but persistent, tooth geometry, backlash, surface finish, and material choice become critical over long life.
  • Designing for human interaction: Manuals from brands and historical overviews emphasize care when changing dates, especially around midnight. The mechanisms are robust but not invincible, a reminder that real users will always push designs outside nominal states.

A New Year’s Perspective

Each New Year’s Day, when the date rolls over from 31 to 1, the same fundamental mechanism that advances the date every night does its job once more: a small, carefully cut set of wheels moves exactly one tooth.

The Origin of Hobbing: From Craft to Scalable Precision

Posted on by NMTA

Before hobbing, cutting precise gear teeth was closer to an art than a repeatable process. Output depended on time, cost, and the operator’s touch. That began to change as innovators pursued a different idea: generate the tooth form through controlled motion rather than copy it one space at a time.

Three milestones set the trajectory:

  • In 1835, Joseph Whitworth patented hobbing for spiral gears.

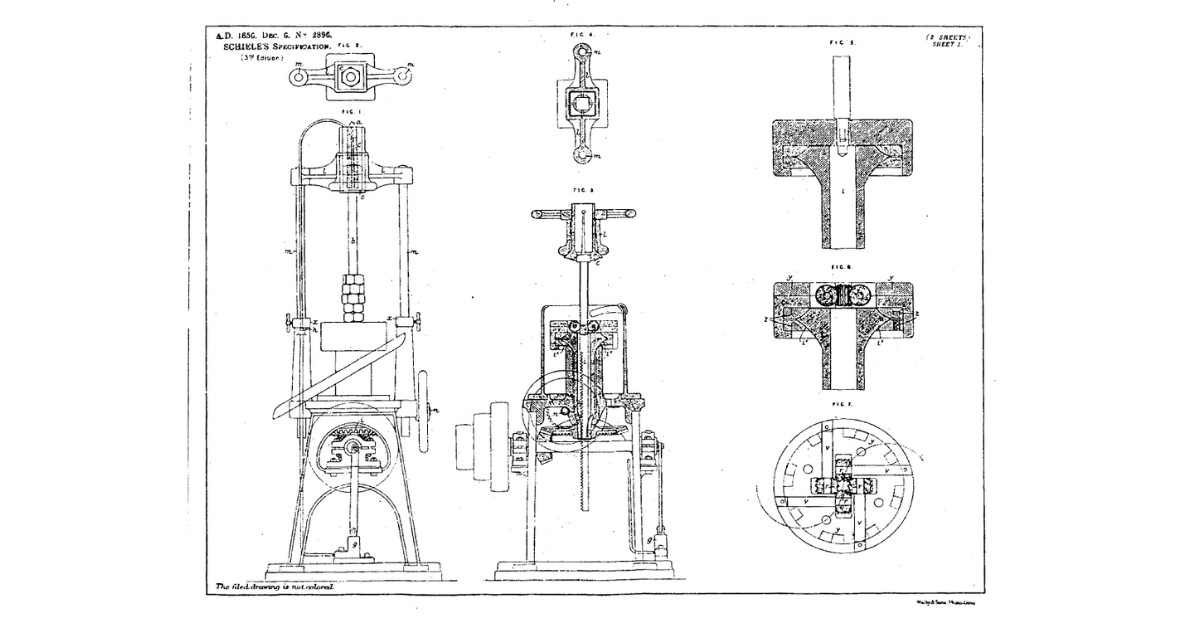

  • In 1856, Christian Schiele patented an early hobbing machine, helping establish the generating approach that would define modern practice.
  • In 1897, Robert Hermann Pfauter patented hobbing for spur and helical gears, cementing the method as the backbone of production gear cutting.

Why hobbing changed everything

At its core, hobbing synchronizes a helical cutter with the rotating blank so the correct tooth geometry emerges from their relative motion. That shift delivered durable advantages:

  • Accurate involute profiles at speed, improving mesh quality and efficiency.
  • Much higher throughput at lower cost per part, enabling true volume production.

How it reshaped manufacturing

Hobbing didn’t remove the need for expertise; it codified it. Predictable kinematics lowered the skill barrier and made high quality teachable and repeatable. That predictability supported the rise of transmissions, differentials, timing drives, and industrial gearboxes across sectors, from automotive and energy to automation and robotics. Over time, hobbing helped drive standardization and rigorous inspection practices, while integrating naturally with heat treatment and finishing.

A line that leads to the future

Expectations keep rising: tighter tolerances, faster iteration, and greater sustainability. The principle Whitworth and his successors helped establish still underpins modern manufacturing, but today’s tools must scale precision and agility together.

This is where NIDEC’s hobbing machines fit. NIDEC machines are built around what matters most now:

  • Repeatable quality across programs and volumes.
  • Agile production that adapts to new designs and shifting demand.
  • Cohesive workflows so teams can move from prototype to production with confidence.

Hobbing turned gear cutting into a scalable science. The next chapter belongs to manufacturers who keep elevating the process. NIDEC machines are built for that future, helping engineers deliver the next generation of drivetrains, robotics, and industrial systems.

Check out NIDEC hobbing machines here: https://www.nidec-machinetoolamerica.com/products/gear-machines/#hobbing-machines

Gear History: From Shipwreck to Shop Floor–What the Antikythera Mechanism Teaches Modern Gear Engineers

Posted on by NMTA

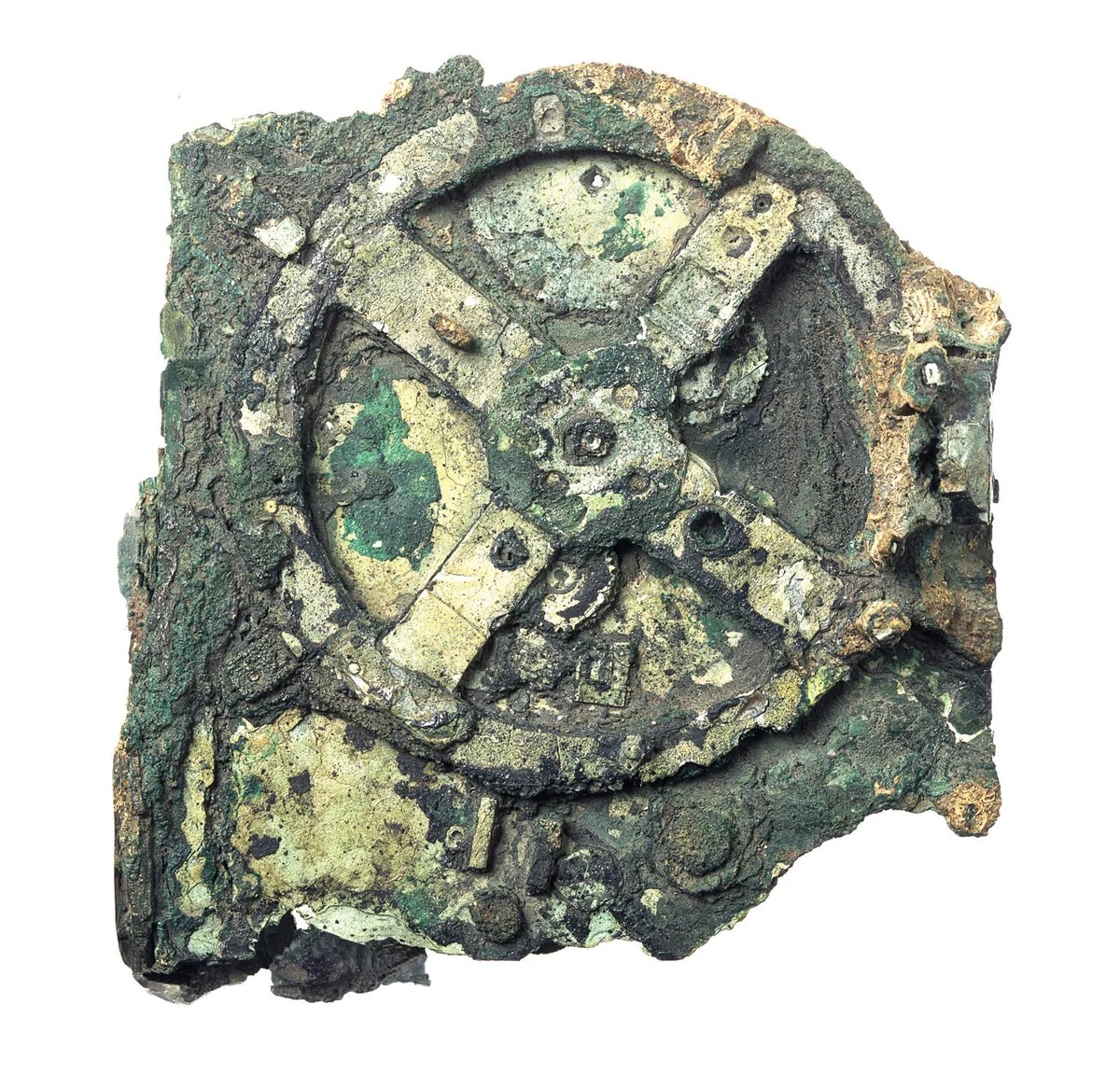

Around 2,100 years ago, long before CNC and CMMs, Greek craftsmen built a compact, hand-cranked computer of bronze gears: the Antikythera Mechanism. Recovered from a Mediterranean shipwreck in 1901, it has been reconstructed from fragments and inscriptions; recent work proposes a coherent design that models the motions of the Sun, Moon, and planets according to ancient Greek astronomical theory. Beyond its historical significance, it offers practical lessons for anyone designing drivetrains, automation platforms, or precision instrumentation today.

A Compact Astronomical Computer

The Antikythera Mechanism is a densely layered assembly of bronze gears housed in a wooden case with engraved dials. Turn a hand crank and pointers sweep across scales that predict eclipses, track lunar phases, and represent planetary positions. Its gear trains encode astronomical periods such as the Metonic cycle (about 19 years) and the Saros cycle (about 18 years and 11 days), combining them into legible displays.

Engineering Ideas, 2,100 Years Early

  1. Differential thinking, ancient style
    • The challenge: The Moon’s apparent velocity varies because of its orbital anomaly.
    • The solution: Epicyclic trains with a pin-and-slot mechanism produce a modulated output from a uniform input—an analog “differential” that synthesizes non-uniform motion.
    • Today’s echo: The same logic underpins differentials, harmonic drives, and cam-like modulation in robotics and precision stages, where uniform motor input is transformed into time-varying motion at the load.

  1. Ratios as models, not just reductions
    • Tooth counts were not arbitrary; they encoded astronomical ratios. Preserving those integer relationships across multiple stages maintained phase fidelity.
    • Today’s echo: Start with a high-fidelity model to define ratio architecture. Whether mapping encoder counts to motion profiles or matching gear stages to spectral requirements, ratio selection should be driven by physics and output specifications.

How Well Did It Work?

Reconstruction studies show a kinematically consistent mechanism that aligns with surviving fragments and inscriptions and can demonstrate and predict astronomical cycles.

Why It Still Inspires

The Antikythera Mechanism compresses theory, design, fabrication, and communication into a unified product. It foreshadows differentials, compound reductions, and cam-like motion synthesis in today’s transmissions, robots, and metrology instruments. For modern engineers, it’s a reminder that lasting engineering couples precise internal models with trustworthy external displays.

If you build drivetrains, automation, or instrumentation, the lesson is timeless: let high-fidelity models drive your gear-ratio architecture, and let clear displays earn operator trust.

Sources:
Nature: A model of the Cosmos in the ancient Greek Antikythera Mechanism
