Gear History: Euler and the involute tooth

Posted on by NMTA

Circa 1754, Leonhard Euler helped put gear tooth geometry on a solid mathematical foundation. His work is often cited in early treatments of the involute profile and why it works so well for power transmission in the real world.

By the 1700s, gears were already essential in clocks, mills, and early machinery. Tooth shapes back then were usually guided by workshop practice, available tools, and whatever worked reliably for a specific build. As gear theory matured, the involute profile emerged as the clear winner because it combines predictable motion with manufacturing practicality.

1) The involute’s real superpower: center distance forgiveness

In a perfect drawing, the center distance never changes. In a real gearbox, it does. Housings deflect under load, bearings wear, temperatures shift dimensions, and tolerance stack-ups happen. The involute profile’s key advantage is that it maintains a constant angular velocity ratio even with small variations in center distance.

2) Line of action: connecting shape to force

The involute tooth form is inseparable from the line of action. This is the path along which force is transmitted during meshing. In a standard involute mesh, the common normal at the point of contact always lies on the same line of action. That line is a common tangent to the base circles of both gears. In a properly functioning system, the gear teeth engage along this line. This ties tooth geometry directly to load direction and outcomes like efficiency, heat generation, and wear.

3) Why manufacturing adopted it and never looked back

The involute is not just mathematically convenient, it is also manufacturing-friendly. Generating methods like hobbing and shaping align naturally with involute geometry, which supports scalable production. As requirements tightened for speed, noise, and durability, the same involute foundation carried forward into finishing processes like grinding, where repeatability and accuracy matter.

What this means today

Modern gear programs add profile and lead modifications, surface engineering, and heat treat control, but the baseline assumption is still the involute. It is a tooth form that is predictable and compatible with modern production methods.

This is the bridge from 18th-century mathematics to today’s factories. At NIDEC MACHINE TOOL AMERICA, we help manufacturers turn that theory into consistent results through the machines used to cut and grind gears to meet modern demands for accuracy, durability, and throughput.

Learn more about NIDEC MACHINE TOOL AMERICA’S products: https://www.nidec-machinetoolamerica.com/products/

Photo: Involute Spur Gears Meshing By M. D. Lebedev – Own work, CC BY 4.0, https://commons.wikimedia.org/w/index.php?curid=157464942

International Manufacturing Technology Show – IMTS 2026

Posted on by NMTA

SEPTEMBER 14 – 19, 2026 | BOOTH 237054 McCormick Place, Chicago

NIDEC MACHINE TOOL AMERICA is heading to Chicago for IMTS 2026, North America’s largest manufacturing technology showcase. As the industry’s premier forum for innovation, IMTS is where the global manufacturing community gathers to explore the tools and technologies shaping the future of production.

In an industry where precision and throughput are the benchmarks of success, NIDEC remains committed to delivering high-performance solutions. We invite you to visit us at Booth 237054 to see our latest technology in action and learn how our systems integrate into modern production environments.

Whether you are looking to optimize your current floor or explore the next generation of gear manufacturing and machining, stop by to connect with our team and see what’s next for your operations.

SEE OUR DIGITAL SHOWROOM AND ADD US TO YOUR SHOW PLANNER >

Gear History: How Winter Driving Depends on Gear Kinematics

Posted on by NMTA

February brings the toughest testing ground for any drivetrain: the icy corner.

When your vehicle enters a turn, geometry dictates that the outside wheel must travel further than the inside wheel. If both wheels were locked to a single shaft, one would be forced to skid. On a dry summer road, this causes tire wear. On an ice patch, it causes a loss of control.

The solution to this problem is the differential, a masterpiece of gear logic that has remained largely unchanged since Onésiphore Pecqueur patented it in 1828.

Schematic diagram of a ring-and-pinion differential

The Geometry of Control

Pecqueur’s design uses a “planet and sun” arrangement of bevel gears. Power enters through a ring gear, which rotates a carrier housing. Inside, small pinions mesh with side gears on each axle.

In a straight line, the gears do not rotate relative to each other. The whole unit spins as one.

In a turn, the pinions begin to “walk” around the side gears, allowing the outside wheel to speed up exactly as much as the inside wheel slows down. The carrier speed is always the average of the two axle speeds. This mechanical averaging is what allows a car to maintain power through a curve without breaking traction due to geometric constraints.

The Traction Tradeoff

While the differential solves the kinematic problem of turning, it introduces a traction limitation. In a standard open differential, torque is split equally between the two wheels. This means that if one wheel is on ice and requires almost no torque to spin, the other wheel, even if it’s on dry pavement, also receives almost no torque. The result is a spinning tire and a stationary vehicle.

This is why limited-slip differentials, locking differentials, and modern traction control systems were developed. They detect when one wheel is slipping and redirect torque or apply braking force to restore forward motion. But even these advanced systems rely on the same fundamental bevel gear architecture that Pecqueur introduced nearly 200 years ago.

The Precision Mandate

For manufacturers, the differential represents a significant challenge. Bevel gears are notoriously sensitive to mounting distances and tooth geometry. Even a few microns of error can lead to excessive noise or localized stress that causes failure under heavy loads.

The tooth contact pattern on a bevel gear is a localized ellipse. If the pinion is mounted too close or too far from the ring gear, that contact shifts to the toe or heel of the tooth. Under the sudden torque spikes common when a wheel regains traction on a patchy road, this misalignment can lead to tooth breakage.

The evolution of the differential is, in many ways, the evolution of the gear cutting machine. The demand for quieter, more durable drivetrains pushed the industry toward the processes we rely on today.

Engineering for the Elements

As we navigate the tail end of winter, the differential serves as a reminder that great engineering is often invisible. It works silently under the chassis, translating complex kinematics into predictable handling.

At NIDEC MACHINE TOOL AMERICA, we build the machines that make precision possible.

Building the Future of Manufacturing: How NIDEC MACHINE TOOL AMERICA Supports the Next Generation

Posted on by NMTA

Manufacturing is changing rapidly, driven by new technologies, new materials, and a constant push for greater efficiency and precision. At NIDEC MACHINE TOOL AMERICA, we believe that staying ahead in this environment starts with people. Supporting the next generation of engineers, technicians, and manufacturing professionals is part of our core mission.

Why Developing Future Talent Matters

Every meaningful advancement in manufacturing begins with skilled, curious, individuals. The industry depends on professionals who understand complex systems and know how to apply them in practical ways. Those skills are built over time through hands-on experience, mentoring, and exposure to real industrial equipment.

Our commitment to education and workforce development reflects this reality. We actively seek out opportunities to work with universities and research institutions, helping prepare students and early-career professionals for the challenges they will face in modern manufacturing environments.

Connecting Industry and Education

One of the most effective ways to support future talent is to bring industry and education close together. NIDEC MACHINE TOOL AMERICA regularly collaborates with academic partners to make that connection real.

Our recent work with The Ohio State University’s Center for Design and Manufacturing Excellence (CDME) included in-depth training on our LAMDA series. Visits like this give students and researchers direct exposure to industrial systems and workflows. They also give our team insight into the questions, ideas, and research priorities that are driving the next generation.

These interactions benefit both sides. Students and researchers gain experience that goes beyond the classroom. NIDEC gains feedback and perspectives that help shape future products, training programs, and support strategies.

Providing Access to Industrial-Grade Technology

To be ready for the workforce, future engineers and technicians need experience with the same level of technology they will encounter in the field. That is why we work to make our systems available in academic and research settings whenever possible.

When students and researchers can work directly with advanced equipment, they learn how these technologies behave in real conditions. They see how process parameters, monitoring, and part design come together. That understanding is difficult to achieve with simulation or theory alone.

This kind of exposure builds confidence, strengthens problem-solving skills, and often shapes long-term career interests in manufacturing and engineering.

Encouraging Curiosity and Innovation

Manufacturing grows when new ideas are put into practice. Our goal is to give emerging professionals the space and tools to explore those ideas. Training programs, research collaborations, and equipment placements all play a role in encouraging experimentation and careful, data-driven innovation.

We want future engineers and technicians to feel comfortable asking questions, testing assumptions, and refining processes. When they can do that on real equipment, guided by experienced professionals, they are better prepared to contribute on day one in an industrial setting.

Looking Ahead

The demand for skilled manufacturing professionals will continue to grow. Technologies will keep advancing, and expectations for quality and efficiency will rise along with them. NIDEC MACHINE TOOL AMERICA remains committed to supporting the people who will meet those expectations.

By working closely with educational institutions, sharing our expertise, and opening access to advanced systems, we are investing in the future of the industry and the communities we serve. The next generation of manufacturing professionals is already taking shape, and we are proud to play a role in their development.

NIDEC’s Three Essential Attitudes: The Operating System Behind Purpose-Driven Manufacturing

Posted on by NMTA

In an era of rapid change, tighter targets, and rising expectations for speed and quality, the companies that endure pair a clear purpose with decisive action. At NIDEC, our philosophy is straightforward and ambitious: design ever more efficient products and improve people’s lives.

Our Three Essential Attitudes, or the “NIDEC Way”—Passion, Enthusiasm, Tenacity; Working hard and smart; and Do it now, do it without hesitation, do it until completed—are more than values on a wall. They guide our teams, our projects, and our partnerships every day.

Below is how these attitudes take shape across our operations, and why they matter for our customers’ competitiveness and for a better industrial future.

Passion, Enthusiasm, Tenacity: Fuel for Innovation

Complex manufacturing challenges rarely resolve in a single sprint. They demand cross-functional collaboration, patience, and the will to iterate. Passion drives ambitious goals. Enthusiasm sustains energy through setbacks. Tenacity ensures we finish the job.

How this shows up at NIDEC:

  • Engineering depth with customer empathy: We don’t just tune specs. We understand throughput constraints, floor layouts, workforce skills, and maintenance cycles.
  • Iteration without fatigue: Whether refining hobbing parameters for micro-geometry accuracy or stabilizing thermal behavior on a machining center, we pursue precision with persistence.
  • Lifecycle commitment: From installation to optimization, we support the full lifecycle, not just the handoff.

Working Hard and Smart: Effort Meets Evidence

Advantage comes from pairing effort with data, process discipline, and the right tooling. That’s how we reduce variability and increase productivity without compromising quality.

How this shows up in our solutions:

  • Application engineering and prototyping: At the NMTA Gear Technology Center, we use our latest gear cutting machines in real-world trial cuts and prototyping to dial in optimal processes before they reach your production floor.
  • Gear inspection and data feedback: State-of-the-art gear inspection equipment verifies quality and feeds measurement data back into process adjustments, tightening tolerances and improving repeatability.
  • Rebuilding, reconditioning, and control retrofits: By rebuilding systems and modernizing older equipment, we extend the life of proven NIDEC platforms while elevating accuracy, reliability, and ease of use.
  • Lifecycle optimization: Through installation, training, maintenance, and ongoing process support, we keep machines running at peak performance and continuously identify opportunities for improvements in cycle time, quality, and uptime.

Outcome: Shorter cycle times, fewer rejects, lower operating costs, and more stable production windows, especially in high-precision environments.

Do It Now; Do It Without Hesitation; Do It Until Completed: A Bias for Action

Delayed decisions defer value. We move decisively, aligning stakeholders, clarifying requirements, and executing with urgency. That discipline accelerates learning and delivery.

How we put action first:

  • Rapid discovery: We define the problem precisely, from target tolerances to surface finish, and get aligned quickly.
  • Prototyping and validation: We run trials, gather data, and iterate to de-risk production.
  • Finish the job: Implementation is the start, not the end. We stay engaged through ramp-up, operator training, and process stabilization until performance holds.

Outcome: Faster time to value, fewer surprises during launch, and sustained performance in real production, not just in a demo.

Why This Matters Now

Manufacturers are navigating:

  • Labor constraints and the need for intuitive, reliable machines
  • Pressure to compress lead times while increasing customization
  • Tighter tolerances for gears and precision components

NIDEC’s Three Essential Attitudes speak directly to these pressures. Passion, enthusiasm, and tenacity keep teams moving through complexity. Working hard and smart grounds improvements in data and repeatability. A bias for action cuts time-to-outcome and keeps initiatives from stalling.

The result is better manufacturing systems: efficient, resilient, and ready for what’s next.

A Better Future, Built One Completed Task at a Time

NIDEC’s corporate philosophy guides our daily decisions. The Three Essential Attitudes turn that philosophy into action on the factory floor and in the boardroom. When teams embrace them, projects move faster, machines perform better, and the long-term impact compounds.

If you are pursuing aggressive performance targets, we’re ready to help. Explore how our manufacturing solutions can support your goals. See our full product line here: https://www.nidec-machinetoolamerica.com/products/.

Gear History at New Year’s: The Mechanics Behind the Date Jump

Posted on by NMTA

On New Year’s Day, it’s easy to focus on the countdown to midnight. But if you wear a mechanical watch, there’s another transition happening in the background: a small gear train advances the date disc by one exact step.

That seemingly simple jump is the product of more than a century of incremental work on calendar displays, culminating in the mid-20th century with robust date and day-date mechanisms that are still the template today.

How Mechanical Date and Day-Date Mechanisms Work

Mechanically, most traditional date and day-date systems share the same basic architecture.

The hour wheel drives an intermediate wheel. That intermediate wheel drives:

  • A star or date wheel with 31 teeth (date).
  • A star wheel with 7 teeth (day of the week) in day-date watches.

Each of these star wheels advances by one tooth every 24 hours.

The intermediate wheel is important: without it, the calendar would advance twice per day. With it, the system steps once per 24-hour cycle and typically changes around midnight.

To hold each indication precisely in place, the system adds:

  • A jumper spring that engages between teeth on the date (and day) wheel.
  • A shaped cam or finger that gradually loads the jumper and then lets in snap into the next tooth, depending on whether the change is standard, semi-instantaneous, or instantaneous.

From a gear-engineering perspective, that means very small modules and teeth must withstand:

  • Cyclic loading from the daily change.
  • Long-term boundary lubrication.

Backlash and tooth form must be controlled so the indication:

  • Lands on center.
  • Resists vibration or partial movement between jumps.

It’s essentially a micro indexing drive synchronized to a 24-hour input.

Short Months and Manual Corrections

Standard date and day‑date mechanisms are built on a simple assumption: every month has 31 days. In a non‑perpetual system, this means the date must be corrected five times each year, whenever the actual month length falls short of 31 days

That simplification keeps the movement compact and relatively straightforward, but it pushes some of the complexity onto the user. To deal with real‑world calendars, watchmakers provide ways to “force” the date mechanism to advance. In modern quick‑set systems, the crown (or, on some watches, corrector pushers) lets the wearer rapidly click the date forward, and in some designs also change the day or month, one indexed tooth at a time. Earlier non‑quick‑set watches are less forgiving: the only way to update the date is to repeatedly rotate the hands past midnight, cycling the 24‑hour mechanism over and over.

In both approaches, the calendar train has to tolerate behavior that goes far beyond the gentle, once‑per‑day change it was nominally designed for. Rapid corrections impose many small, user‑driven shock loads in quick succession. On top of that, there’s the risk of overlap between human inputs and the watch’s own automatic changeover. If the wearer tries to adjust the date too close to midnight, while the change mechanism is partially engaged, there’s potential for damage.

For gear designers, this will feel familiar. The mechanism is sized and optimized for the ideal operating case: one clean step per 24 hours. But its durability and real‑world reliability are defined just as much by edge conditions: irregular month lengths, impatient users advancing the date as fast as they can, and ill‑timed inputs right in the middle of an automatic change.

What This Means for Modern Gear and Mechanism Design

For engineers working on other gear-driven systems such as indexing tables, rotary actuators, and small step-feed mechanisms, there are a few direct takeaways:

  • Continuous rotation to discrete steps: Calendar mechanisms show a clean way to derive discrete, repeatable steps from a continuous drive, using gear ratios and spring-based jumpers rather than electronics.
  • Load and tolerance discipline at small scale: Because the teeth are tiny and the loads are light but persistent, tooth geometry, backlash, surface finish, and material choice become critical over long life.
  • Designing for human interaction: Manuals from brands and historical overviews emphasize care when changing dates, especially around midnight. The mechanisms are robust but not invincible, a reminder that real users will always push designs outside nominal states.

A New Year’s Perspective

Each New Year’s Day, when the date rolls over from 31 to 1, the same fundamental mechanism that advances the date every night does its job once more: a small, carefully cut set of wheels moves exactly one tooth.

Blaser Swisslube, Inc. and NIDEC MACHINE TOOL AMERICA Announces Strategic Partnership to Elevate Metalworking Performance and Productivity

Posted on by NMTA
Blaser x NMTA Press ReleaseDownload

Find our press release featured in other publications:

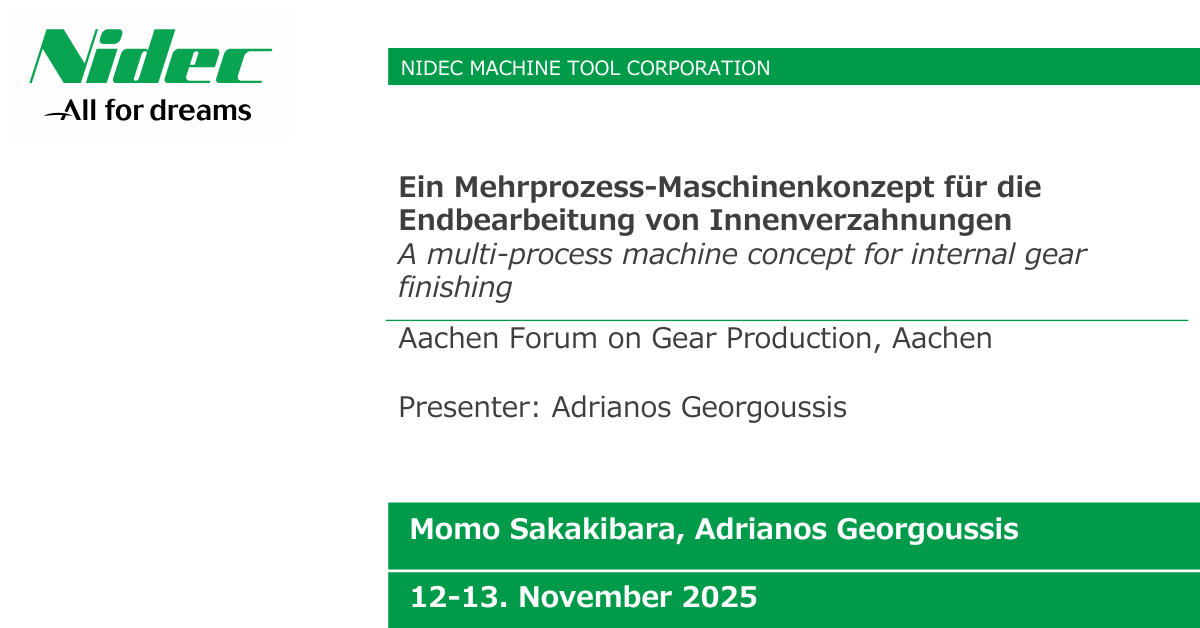

A Multi-process Machine Concept for Internal Gear Finishing

Posted on by NMTA
NIDEC gear finishing Adrianos GeorgoussisDownload

The Origin of Hobbing: From Craft to Scalable Precision

Posted on by NMTA

Before hobbing, cutting precise gear teeth was closer to an art than a repeatable process. Output depended on time, cost, and the operator’s touch. That began to change as innovators pursued a different idea: generate the tooth form through controlled motion rather than copy it one space at a time.

Three milestones set the trajectory:

  • In 1835, Joseph Whitworth patented hobbing for spiral gears.
  • In 1856, Christian Schiele patented an early hobbing machine, helping establish the generating approach that would define modern practice.
  • In 1897, Robert Hermann Pfauter patented hobbing for spur and helical gears, cementing the method as the backbone of production gear cutting.

Why hobbing changed everything

At its core, hobbing synchronizes a helical cutter with the rotating blank so the correct tooth geometry emerges from their relative motion. That shift delivered durable advantages:

  • Accurate involute profiles at speed, improving mesh quality and efficiency.
  • Much higher throughput at lower cost per part, enabling true volume production.

How it reshaped manufacturing

Hobbing didn’t remove the need for expertise; it codified it. Predictable kinematics lowered the skill barrier and made high quality teachable and repeatable. That predictability supported the rise of transmissions, differentials, timing drives, and industrial gearboxes across sectors, from automotive and energy to automation and robotics. Over time, hobbing helped drive standardization and rigorous inspection practices, while integrating naturally with heat treatment and finishing.

A line that leads to the future

Expectations keep rising: tighter tolerances, faster iteration, and greater sustainability. The principle Whitworth and his successors helped establish still underpins modern manufacturing, but today’s tools must scale precision and agility together.

This is where NIDEC’s hobbing machines fit. NIDEC machines are built around what matters most now:

  • Repeatable quality across programs and volumes.
  • Agile production that adapts to new designs and shifting demand.
  • Cohesive workflows so teams can move from prototype to production with confidence.

Hobbing turned gear cutting into a scalable science. The next chapter belongs to manufacturers who keep elevating the process. NIDEC machines are built for that future, helping engineers deliver the next generation of drivetrains, robotics, and industrial systems.

Check out NIDEC hobbing machines here: https://www.nidec-machinetoolamerica.com/products/gear-machines/#hobbing-machines

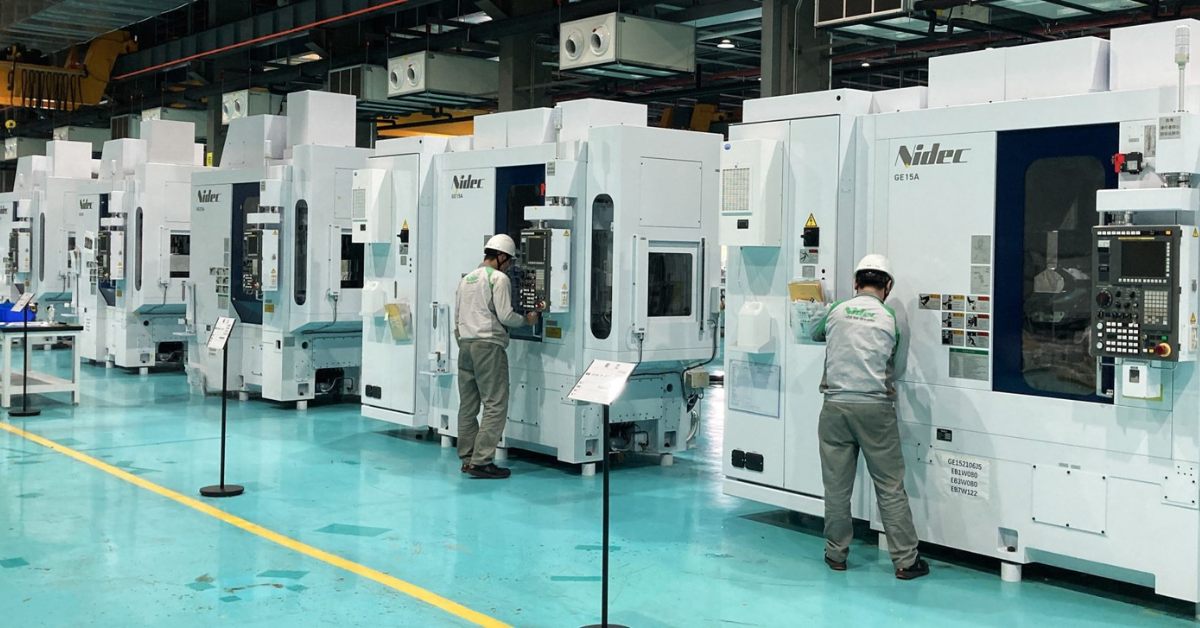

Monozukuri: Craft, Quality, and Continuous Improvement Powered by 80+ Years of NIDEC Precision

Posted on by NMTA

In a world where manufacturers can’t afford slowdowns, reliability isn’t a nice-to-have, it’s the core advantage. At NIDEC MACHINE TOOL AMERICA, reliability is not an outcome by chance. It’s the result of monozukuri: the Japanese, comprehensive approach to manufacturing that unites creativity with quality across design, process control, and people.

Monozukuri is how we think, how we work, and how we support our customers worldwide. It’s why gear manufacturers count on us for stable microns, higher uptime, and predictable throughput, backed by applications and service teams behind every machine.

What is Monozukuri?

Monozukuri literally means ‘making things,” but in practice it goes far deeper. It’s a culture of disciplined creativity: designing smarter, assembling with intent, and continually improving every link in the chain. It integrates:

  • Design excellence: Innovating with purpose, prioritizing precision in form and function.
  • Process control: Engineering repeatability into every step of manufacturing.
  • People and craftsmanship: Empowering skilled teams to solve hard problems and elevate quality with pride.
  • Continuous improvement: Iterating relentlessly to reduce variability and elevate performance.

At NIDEC, monozukuri is the connective tissue that ties product development, machining performance, and field support into a single, customer-focused system.

80+ Years of Momentum and Shifting Into A New Gear

We are already a global leader in machine tools, and we’re accelerating. Grounded in over 81 years of history yet driven by a tradition of entirely new thought, NIDEC is leveraging our global network to bring advances never before seen in the gear market. The result: even greater accuracy, productivity, and reliability for our customers’ most demanding applications.

From Philosophy to Performance: What Manufacturers Gain

  • Stable microns: Precision that stays in tolerance, shift after shift, part after part.
  • Higher uptime: Machines built to run, supported by proactive service and preventative maintenance strategies.
  • Predictable throughput: Process capability you can plan around, reducing scrap, rework, and surprises.
  • End-to-end support: Engineers and service teams aligned to your production goals.

This integrated approach translates directly to lower total cost of ownership and higher confidence in delivery schedules.

Global Presence, Local Commitment: Precision, Performance, Partnership

With a worldwide network and deep regional expertise, NIDEC MACHINE TOOL AMERICA combines global innovation with local responsiveness. Whether you’re launching a new program, scaling production, or tightening tolerances, our teams meet you where you are, supporting process development, turnkey integration, and service.

Gear manufacturing is evolving: tighter tolerances, new materials, and smarter automation. In these exciting times, we continue to focus on our customers. Monozukuri ensures we don’t just keep up; we lead with solutions that raise the ceiling on precision, performance, and partnership.

Explore our Products: https://www.nidec-machinetoolamerica.com/products/
